Color 11 Click

How does it work?

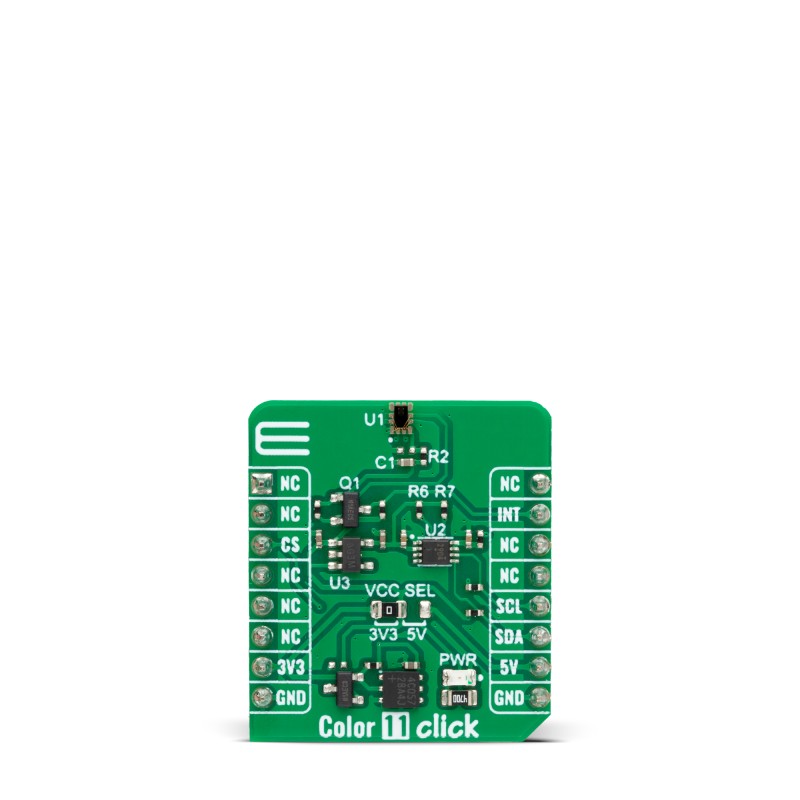

Color 11 Click is based on the TCS34083M, an ALS/Color sensor with selective flicker detection from ams-OSRAM. This sensor's Ambient Light and Color Sensing function provides five concurrent ambient light sensing channels: Red, Green, Blue, Clear, and Wideband. The RGB and Clear channels have a UV/IR blocking filter. This architecture accurately measures ambient light and enables the calculation of illuminance, chromaticity, and color temperature to manage display appearance. The device integrates direct detection of 50Hz or 60Hz ambient light flicker. Flicker detection is executed parallel with ambient light and color sensing and has an independent gain configuration. The flicker detection engine can also buffer data for calculating other flicker frequencies externally.

The sensor works at 1.8V, so the Color 11 Click is equipped with the AP2112, a CMOS LDO from Diodes Incorporated. The PCA9306, a dual bidirectional voltage level translator from Texas Instruments, is used to meet higher logic levels besides additional circuits.

Color 11 Click uses a standard 2-Wire I2C interface to communicate with the host MCU, supporting clock frequency of up to 400kHz. The TCS34083M is an interrupt-driven device. Over the INT pin, the sensor will output interrupts of ALS/color according to the thresholds, flicker detection, and more.

This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

Specifications

Pinout diagram

This table shows how the pinout on Color 11 Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
	NC	2	RST	INT	15	INT	Interrupt
ID COMM	CS	3	CS	RX	14	NC
	NC	4	SCK	TX	13	NC
	NC	5	MISO	SCL	12	SCL	I2C Clock
	NC	6	MOSI	SDA	11	SDA	I2C Data
Power Supply	3.3V	7	3.3V	5V	10	5V	Power Supply
Ground	GND	8	GND	GND	9	GND	Ground

Onboard settings and indicators

Color 11 Click electrical specifications

Software Support

We provide a library for the Color 11 Click as well as a demo application (example), developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.

Package can be downloaded/installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.

Library Description

This library contains API for Color 11 Click driver.

Key functions

• color11_get_als_data Color 11 get ALS data function.

• color11_get_illuminance Color 11 get illuminance function.

• color11_get_data_valid_status Color 11 get data valid status function.

Example Description

This library contains API for the Color 11 Click driver. The demo application sets sensor configuration and reads and displays ALS data measurement results.

void application_task ( void )
 {
     uint8_t status = 0;
     if ( COLOR11_OK == color11_get_data_valid_status( &color11, &status ) )
     {
         color11_als_data_t color_data;
         if ( COLOR11_OK == color11_get_als_data( &color11, &color_data ) && ( COLOR11_STATUS2_AVALID & status ) )
         {
             log_printf( &logger, " Clear: %urn", color_data.clear );
             log_printf( &logger, " Red : %urn", color_data.red );
             log_printf( &logger, " Green : %urn", color_data.green );
             log_printf( &logger, " Blue : %urn", color_data.blue );
             log_printf( &logger, " Wideband : %urn", color_data.wideband );
             log_printf( &logger, " Flicker : %urn", color_data.flicker );
             log_printf( &logger, " ------------------rn" );
             Delay_ms( 1000 );
         }
     }
 }

The full application code, and ready to use projects can be installed directly from NECTO Studio Package Manager (recommended), downloaded from our LibStock™ or found on Mikroe github account.

Other Mikroe Libraries used in the example:

• MikroSDK.Board
• MikroSDK.Log
• Click.Color11

Additional notes and informations

Depending on the development board you are using, you may need USB UART click, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.

mikroSDK

This Click board™ is supported with mikroSDK - MIKROE Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.

For more information about mikroSDK, visit the official page.
